5-1/2” Standard Clincher Tong

5-1/2” Standard Clincher Tong

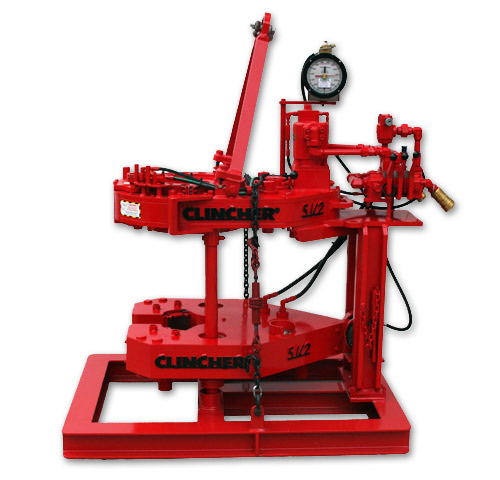

5-1/2" Standard Clincher Tongs


5-1/2” Standard Clincher Tong with Hydraulic Backup. Maximum Torque 12,000 ft lbs.


Tong Specifications
Maximum Torque 12,000 ft. lbs. / 16,270 Nm
Maximum Operating Pressure 3,000 P.S.I. / 20.7 Bar
RPM @ 35 GPM / 132 LPM Manual Gearbox
High 81
Low 17
Tong Handle Length 24 1/2" / 62.2 cm
Backup Handle Length 29" / 73.7 cm
Length 38" / 96.5 cm
Width w/ Handles / Width w/o Handles 30 1/4" / 76.8 cm / 24" / 61 cm

Weigth - Tong w/ Backup [approximate]		 1,241 lbs. / 564 Kg
2 Tong Jaw Sizes 2 1/16" thru 3 1/2" / 3 1/2" thru 5 1/2"
  1 Backup Jaw 2 1/16" thru 5 1/2"
APPLICATION: For use when are required to pull production strings. Ideal for 2-3/8” to 3-1/2” diameter Tubing. Compact design allows this tool to be used in snubbing unit baskets.
