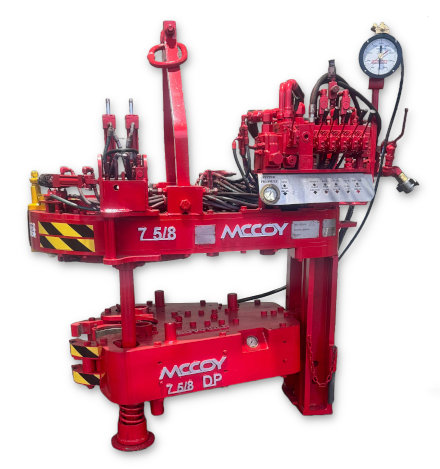

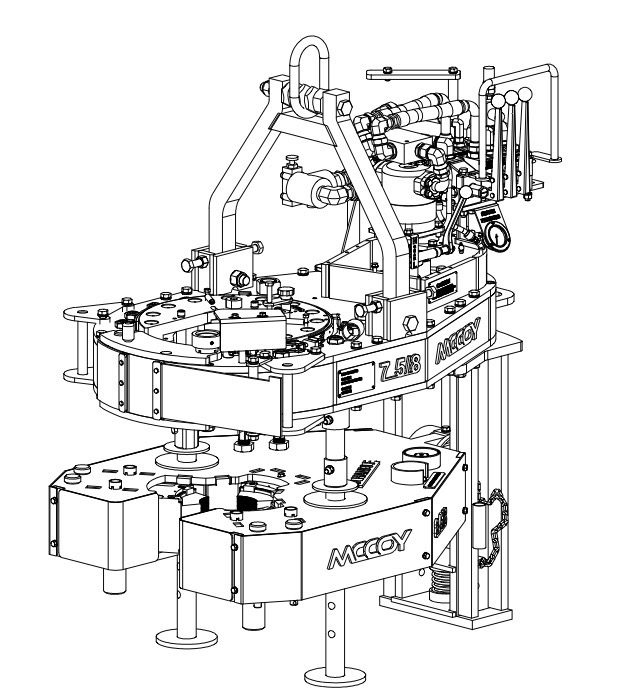

7-5/8” MCCOY Tong

7-5/8” MCCOY Tong. Maximum Torque 30,000 ft lbs.

Tong Specifications

Minimum Tong Size OD	2.375 in. (51 mm)
Maximum Tong Size OD	7.625 in. (178 mm)
Backup Minimum Tong Size OD	2.375 in. (51 mm)
Backup Maximum Tong Size OD	7.625 in. (178 mm)
Maximum Torque	30,000 lb·ft (40,675 N·m)
Tong Arm Length	40 in. (1,016 mm)
Backup Handle Length	36 in. (914 mm)
Maximum Hydraulic Requirements	35 gpm (132 Lpm) and 2,700 psi (186 bar)
Gear Speed	Low Speed: 5.2 rpm High Speed: 37.6 rpm
Overall Length with Door Closed	71.875 in. (1,803 mm)
Overall Width	40.438 in. (1,016 mm)
Overall Height	72.625 in. (1,829 mm)
Overall Weight	4,040 lb. (1,833 kg)
