Casing Jacks 282 & 385 ton

Casing Jacks 282 & 385 ton
Perkins 1206E
Casing Jacks 282 & 385 ton Technical Specifications
  • 202HP @ 2200 RPM
  • 12v start and charging system
  • Dry element remote mount Donaldson air cleaner
  • SAE #3 flywheel housing w/10 ” -11.5 ” flywheel (2.83” pilot)
  • Front and rear mounting support
8'3" Tall 9'11" Long 8'2" Wide
  • Electric fuel pump
  • 12v fuel shutoff solenoid
The 1100D range is the ultimate power solution and available with mechanical or electronic control. All electronically controlled models in this range now incorporate proven components of Caterpillar® ACERTTM Technology. The 1100D range with their wide choice of build options, plus all the features and benefits, present a secure future for all our customers at Tier 3/Stage IIIA emissions legislation. 120 US Gallons
65 US Gallons
6.0 CIR 5800 PSI Max 5000PSI Continuous 43.25 GPM
200-5000PSI Pressure Relief, Outlet Check Valve, Reducing Valve Remote Controlled, Rated Flow 120 GPM 0-6000 PSI with 4 ” Dial
  •  Hydraulic Reservoir Capacity
  •  Diesel Tank Capacity
  •  Hydraulic Pump Oilgear
  •  Pump Flow at 1800 RPM:
PVG 100
•Remote Adjustable Pump Pressure Control:
  • Pump Safety Manifold Containing:
  • Directional Control Valve:
  • Pressure Gauge
  • Return Filter:
  • Tank Breather
In Tank 300 GPM
10 Micron
• Pump Controls, Remote Pressure Compensation, Maximum Volume Stop
  • Remote Joystick Control for directional valve in operator's console
  • Remote Pump Pressure On/Off Control
  • Include heat exchanger, drip pan, headache rack, air type with remote pump for continuous oil circulation
    • CASING JACK SLIPS SIZES
    2 3/8”
    2 7/8”
    3 ½”
    4 ½”
    5 ½”
    6 5/8”
    7”
    7 5/8” & 7 3/4"
    8 5/8”
    9 5/8”
    10 3/4” & 10 5/8”
    11 3/4” & 11 7/8”
    13 3/8 & 13 5/8”
    16”
    18 5/8”
    20”
    22”
    24”
    26”

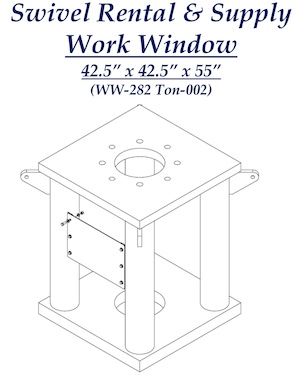

    30”    		 Work Window
