5-1/2” UHT Clincher Tong

5-1/2” UHT Clincher Tong
5-1/2

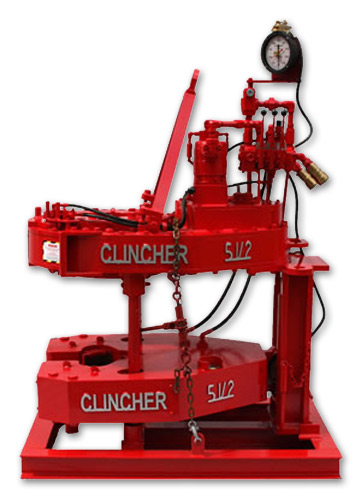

5-1/2” UHT Clincher Tong with Hydraulic Backup. Maximum Torque 25,000 ft lbs.


Tong Specifications
Maximum Torque  25,000 ft lbs / 33,895 Nm
Maximum Operating Pressure  3,000 P.S.I. / 207 Bar
RPM @ 35 GPM/133 LPM:  Manual Gearbox
Maximum Allowable Flow Rate  60 GPM / 227 LPM
High Gear  45
Low Gear
Tong Handle Length  32-1/2" / 82.6 cm
Backup Handle Length  28" / 71.1 cm
Overall Length  50" / 127 cm
Approx. Weight Tong & Backup  2,775 lbs / 1,258.7 kg
Tong Jaw Options  2-1/16" thru 3-1/2" Low Friction
  3-3/4" thru 5-1/2"
1 Backup Jaw Size  2-1/16" thru 5-1/2"
Gripping Range for Dovetail Tong Jaws  3/8" / 1.5 cm undersize
Gripping Range for Lockjaw DP Backup dressed with Dovetail Adapters  3/8" / 1.5 cm undersize
APPLICATION: For use when higher torques are required to pull production strings. Ideal for 3-1/2” diameter drillpipe. Compact design allows this tool to be used in snubbing unit baskets.
